6.2 Inch IPS Touch Display for Smart Office Control Panels
Product Introduction
This 6.2 Inch IPS TFT LCD Display features a 1024×600 resolution and capacitive touch functionality, providing a compact display solution for Office Automation Display, Human Machine Interface and Embedded Display applications. The combination of IPS viewing technology and responsive touch operation helps improve user interaction and information accessibility in modern intelligent terminals.
Integration And Development
The display module supports LVDS Interface, RGB Interface and MIPI Interface, providing flexibility for different hardware platforms and embedded systems. The capacitive touch panel adopts an I2C communication interface, helping simplify integration and development. Multiple interface options allow designers to select suitable solutions according to project requirements.
Touch And Display Experience
• 1024×600 resolution supports clear presentation of operating interfaces and visual information.
• IPS TFT LCD technology provides viewing angles of 80/80/80/80 for consistent visibility.
• Capacitive touch panel with GG structure supports smooth and accurate touch operation.
• Optional brightness levels of 500 cd/m² and 700 cd/m² help adapt to different working environments.
• Suitable for applications requiring efficient interaction and reliable display performance.
Office Automation Applications
• Suitable for Office Automation Display terminals used for equipment control and information management.
• Can be integrated into Human Machine Interface systems for operation and monitoring tasks.
• Applicable to intelligent control panels requiring touch interaction and visual feedback.
• Suitable for embedded terminals, self-service equipment and smart office devices.
• Can be used in commercial applications where compact size and responsive operation are important.
The 6.2 Inch IPS Touch TFT LCD Display combines touch functionality, flexible interface options and clear image presentation, making it suitable for Office Automation Display, Embedded Display and Human Machine Interface applications.
Product Specifications
|
Number Of Pixels
|
1024 * 600pixels
|
|
Active Area
|
77.23 * 137.47mm
|
|
Module Outline
|
88.3*155.3*4.58mm
|
|
Aspect Ratio
|
16:9
|
|
Display Model
|
Normally Black
|
|
Viewing Angle(CR>10)
|
80/80/80/80
|
|
Contrast Ratio
|
1000(Typ)
|
|
NTSC
|
60%Typ
|
|
LCM Brightness
|
500 cd/m²(Typ) 700 cd/m²(Typ)
|
|
Interface
|
LVDS/RGB/MIPI
|
|
Operating Temperature
|
-30~+80℃
|
|
Storage Temperature
|
-30~+85℃
|

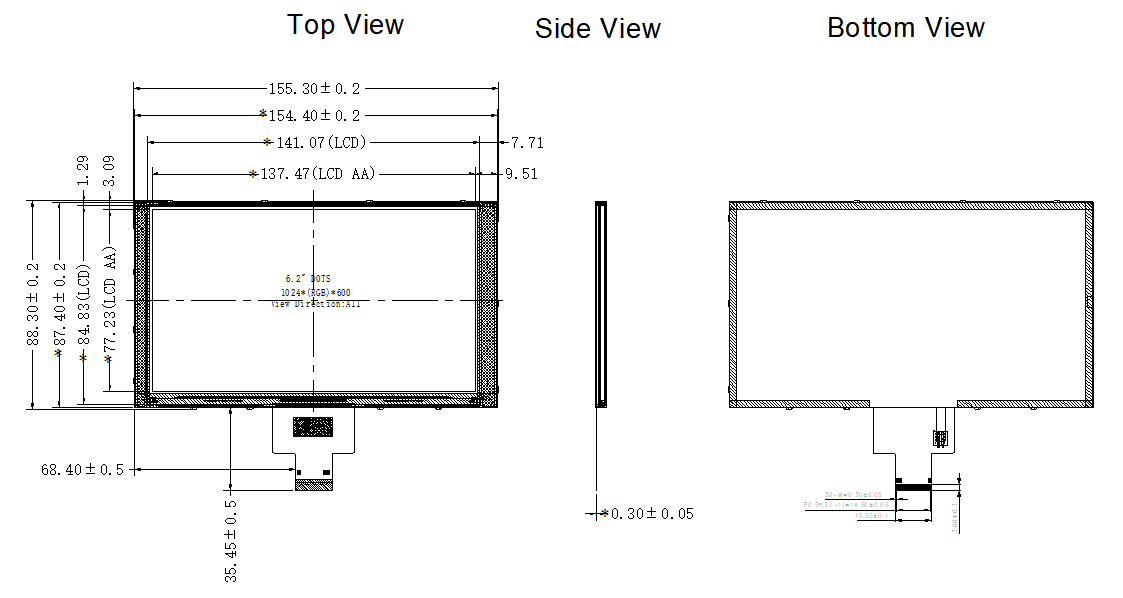

6.2 Inch IPS TFT LCD Module Drawing
